Virtual Network Design

VNet design is one of the first conversations in any Azure engagement. The decisions — address space, subnet structure, peering topology — are made before most workloads exist, which means they have to account for what's coming. I've inherited environments with 192.168.x.x address spaces assigned to Azure VNets, which instantly clashes with VPN clients on the same subnet. Getting this right takes 30 minutes. Fixing it later takes weeks.

Address space planning

Step 1: IP Address Planning

The non-negotiables I start with:

1. Avoid overlaps with on-premises and other Azure networks
2. Plan for growth (allocate larger ranges than current needs)
3. Use RFC 1918 private IP ranges
4. Document all allocations

Recommended Allocation Strategy:

Corporate IP Space: 10.0.0.0/8
  ├── Production:    10.0.0.0/12  (10.0.0.0 - 10.15.255.255)
  ├── Development:   10.16.0.0/12 (10.16.0.0 - 10.31.255.255)
  ├── Testing:       10.32.0.0/12 (10.32.0.0 - 10.47.255.255)
  └── Sandbox:       10.48.0.0/12 (10.48.0.0 - 10.63.255.255)

Region: East US Production
  └── Hub VNet:      10.0.0.0/16
  └── Spoke 1 (App1): 10.1.0.0/16
  └── Spoke 2 (App2): 10.2.0.0/16

Step 2: VNet and Subnet Sizing

VNet Size Recommendations:

Environment	VNet Size	Usable IPs	Use Case
Large Enterprise Hub	/16	~65,000	Centralized services
Application Spoke	/16	~65,000	Multi-tier app
Small Workload	/20	~4,000	Single app, few resources
Development	/20	~4,000	Dev/test environments

Subnet Size Recommendations:

Purpose	Size	Usable IPs	Notes
AzureFirewallSubnet	/26	59	Minimum /26 required
GatewaySubnet	/27	27	Minimum /27, /26 recommended
AzureBastionSubnet	/26	59	Minimum /26 required
AKS Node Pool	/22 - /20	1,019 - 4,091	Depends on pod count
Web Tier	/24	251	10-100 VMs
App Tier	/24	251	10-100 VMs
Data Tier	/25	123	5-50 databases
Management	/27	27	Jump boxes, monitoring

Azure Reserved IPs per Subnet:

• .0 - Network address
• .1 - Default gateway (Azure)
• .2 - Azure DNS mapping
• .3 - Azure reserved
• .255 - Broadcast address (last IP)

Example: Subnet 10.1.1.0/24 has 251 usable IPs (10.1.1.4 - 10.1.1.254)

Step 3: Subnet Design Patterns

Three-Tier Application

VNet: 10.1.0.0/16 (vnet-app-prod-eastus)
  ├── snet-web:        10.1.1.0/24  (Web/Frontend)
  ├── snet-app:        10.1.2.0/24  (Application Logic)
  ├── snet-data:       10.1.3.0/24  (Databases)
  ├── snet-integration:10.1.4.0/24  (App Service VNet Integration)
  └── snet-privatelink:10.1.5.0/24  (Private Endpoints)

Hub VNet Structure

Hub VNet: 10.0.0.0/16 (vnet-hub-prod-eastus)
  ├── AzureFirewallSubnet:    10.0.0.0/26   (Firewall)
  ├── GatewaySubnet:          10.0.1.0/27   (VPN/ExpressRoute)
  ├── AzureBastionSubnet:     10.0.2.0/26   (Bastion)
  ├── snet-management:        10.0.3.0/24   (Jump boxes)
  └── snet-shared-services:   10.0.4.0/24   (DNS, monitoring)

Step 4: VNet Peering Design

Hub-Spoke Topology (Recommended):

        Hub VNet (10.0.0.0/16)
           /    |    \
          /     |     \
         /      |      \
    Spoke 1  Spoke 2  Spoke 3
  (10.1.0.0/16)(10.2.0.0/16)(10.3.0.0/16)

Peering Options:

• AllowVirtualNetworkAccess: Enable communication
• AllowForwardedTraffic: Allow traffic from other networks
• AllowGatewayTransit: Share VPN/ExpressRoute (Hub only)
• UseRemoteGateways: Use hub's gateway (Spokes only)

No Transitive Routing: Spokes cannot communicate directly. Traffic must route through hub (Azure Firewall or NVA).

Terraform Example

# Variables for IP planning
variable "hub_vnet_cidr" {
  default = "10.0.0.0/16"
}

variable "spoke_prod_cidr" {
  default = "10.1.0.0/16"
}

# Hub VNet
resource "azurerm_virtual_network" "hub" {
  name                = "vnet-hub-prod-${var.region}"
  resource_group_name = azurerm_resource_group.hub.name
  location            = var.region
  address_space       = [var.hub_vnet_cidr]

  dns_servers = ["10.0.4.4", "10.0.4.5"]  # Custom DNS if needed

  tags = {
    Environment = "Production"
    Purpose     = "Hub"
    CostCenter  = "IT-Network"
  }
}

# Hub Subnets
resource "azurerm_subnet" "firewall" {
  name                 = "AzureFirewallSubnet"  # Name is mandatory
  resource_group_name  = azurerm_resource_group.hub.name
  virtual_network_name = azurerm_virtual_network.hub.name
  address_prefixes     = ["10.0.0.0/26"]
}

resource "azurerm_subnet" "gateway" {
  name                 = "GatewaySubnet"  # Name is mandatory
  resource_group_name  = azurerm_resource_group.hub.name
  virtual_network_name = azurerm_virtual_network.hub.name
  address_prefixes     = ["10.0.1.0/27"]
}

resource "azurerm_subnet" "bastion" {
  name                 = "AzureBastionSubnet"  # Name is mandatory
  resource_group_name  = azurerm_resource_group.hub.name
  virtual_network_name = azurerm_virtual_network.hub.name
  address_prefixes     = ["10.0.2.0/26"]
}

# Spoke VNet
resource "azurerm_virtual_network" "spoke_prod" {
  name                = "vnet-spoke-prod-${var.region}"
  resource_group_name = azurerm_resource_group.spoke.name
  location            = var.region
  address_space       = [var.spoke_prod_cidr]

  tags = {
    Environment = "Production"
    Purpose     = "Application Workloads"
    Application = "MyApp"
  }
}

# Application Tier Subnets
locals {
  spoke_subnets = {
    web = {
      name   = "snet-web"
      prefix = "10.1.1.0/24"
    }
    app = {
      name   = "snet-app"
      prefix = "10.1.2.0/24"
    }
    data = {
      name   = "snet-data"
      prefix = "10.1.3.0/24"
      # Disable service endpoints for data tier
      service_endpoints = ["Microsoft.Sql", "Microsoft.Storage"]
    }
  }
}

resource "azurerm_subnet" "spoke" {
  for_each = local.spoke_subnets

  name                 = each.value.name
  resource_group_name  = azurerm_resource_group.spoke.name
  virtual_network_name = azurerm_virtual_network.spoke_prod.name
  address_prefixes     = [each.value.prefix]

  service_endpoints = lookup(each.value, "service_endpoints", [])
}

# VNet Peering: Hub to Spoke
resource "azurerm_virtual_network_peering" "hub_to_spoke_prod" {
  name                      = "peer-hub-to-spoke-prod"
  resource_group_name       = azurerm_resource_group.hub.name
  virtual_network_name      = azurerm_virtual_network.hub.name
  remote_virtual_network_id = azurerm_virtual_network.spoke_prod.id

  allow_virtual_network_access = true
  allow_forwarded_traffic      = true
  allow_gateway_transit        = true  # Hub shares gateway
  use_remote_gateways          = false
}

# VNet Peering: Spoke to Hub
resource "azurerm_virtual_network_peering" "spoke_prod_to_hub" {
  name                      = "peer-spoke-prod-to-hub"
  resource_group_name       = azurerm_resource_group.spoke.name
  virtual_network_name      = azurerm_virtual_network.spoke_prod.name
  remote_virtual_network_id = azurerm_virtual_network.hub.id

  allow_virtual_network_access = true
  allow_forwarded_traffic      = true
  allow_gateway_transit        = false
  use_remote_gateways          = false  # Set true after gateway exists

  depends_on = [
    azurerm_virtual_network_peering.hub_to_spoke_prod
  ]
}

# User Defined Route (Force traffic through Firewall)
resource "azurerm_route_table" "spoke" {
  name                          = "rt-spoke-prod"
  resource_group_name           = azurerm_resource_group.spoke.name
  location                      = var.region
  disable_bgp_route_propagation = false

  route {
    name                   = "to-internet-via-firewall"
    address_prefix         = "0.0.0.0/0"
    next_hop_type          = "VirtualAppliance"
    next_hop_in_ip_address = azurerm_firewall.hub.ip_configuration[0].private_ip_address
  }

  route {
    name           = "to-onprem-via-firewall"
    address_prefix = "192.168.0.0/16"  # On-prem CIDR
    next_hop_type  = "VirtualAppliance"
    next_hop_in_ip_address = azurerm_firewall.hub.ip_configuration[0].private_ip_address
  }
}

# Associate Route Table to Subnets
resource "azurerm_subnet_route_table_association" "spoke" {
  for_each = azurerm_subnet.spoke

  subnet_id      = each.value.id
  route_table_id = azurerm_route_table.spoke.id
}

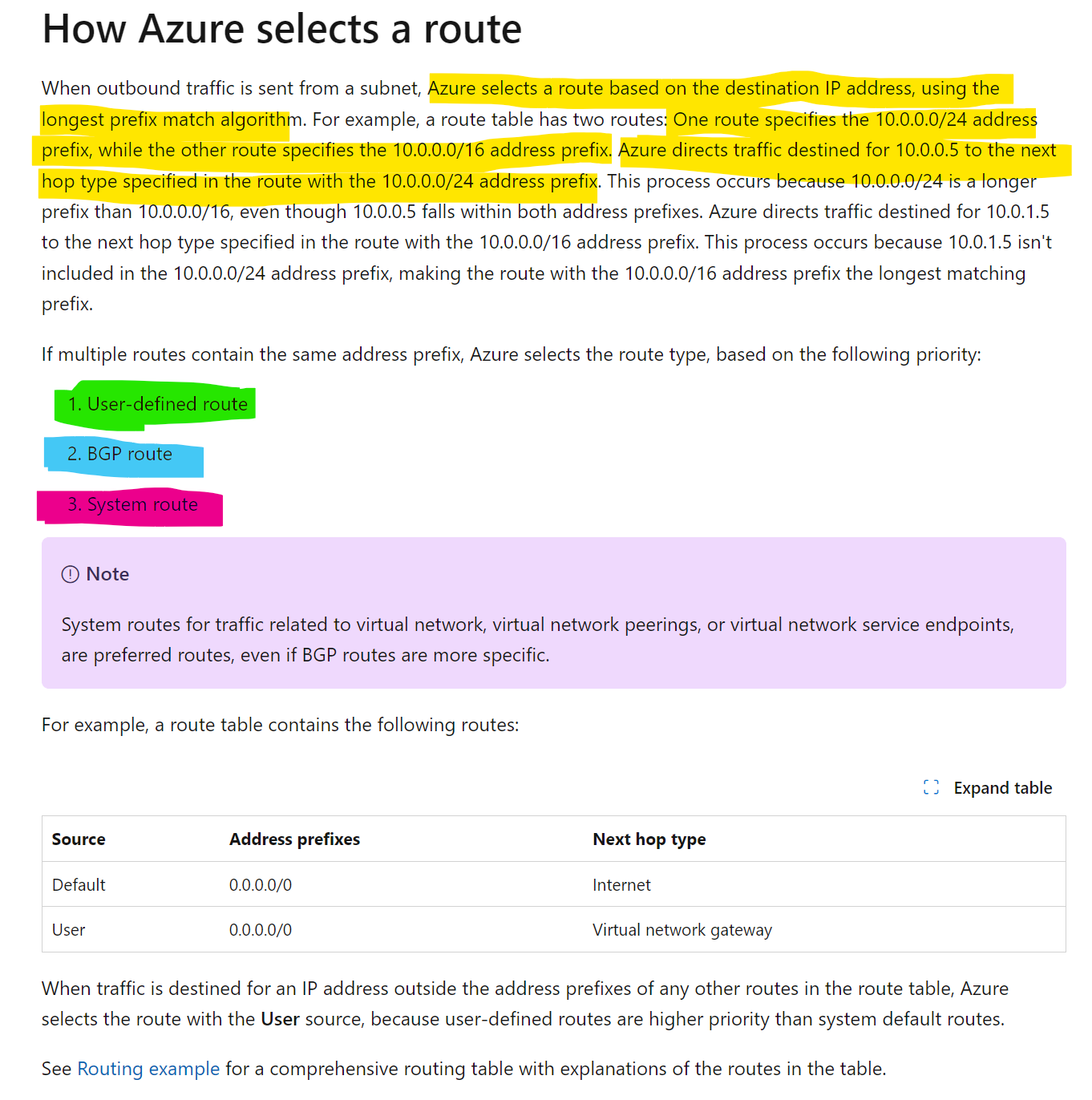

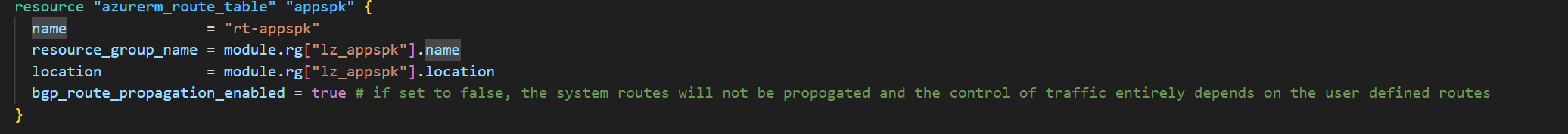

BGP propagation and NVA routing

When I route 0.0.0.0/0 to an NVA (FortiGate, Azure Firewall, etc.) and disable BGP route propagation on the route table, every route to spokes, internet, and Azure services must be manually configured. This gives total control over traffic -- nothing flows unless I've explicitly allowed it -- but it makes network rule management significantly harder as the environment grows.

I've used this pattern in environments where the security team wants zero implicit connectivity. It works, but the operational cost is real -- every new spoke, every new PaaS service that needs a service tag route, every Azure service that needs a management endpoint becomes a manual route table entry. I prefer keeping BGP propagation enabled and controlling traffic at the firewall/NVA policy layer instead.

Best Practices

IP Address Planning

✅ Do:

• Use /16 for VNets to allow for growth
• Document IP allocations in a central spreadsheet
• Reserve IP ranges for future regions and environments
• Use consistent CIDR allocation across environments
• Test for overlaps before deployment

❌ Avoid:

• Overlapping IP ranges with on-premises
• Using public IP ranges for private networks
• Allocating too small subnets that can't grow
• I avoid 192.168.x.x because it clashes with most home networks and VPN clients

Subnet Design

✅ Do:

• Create separate subnets for each tier (web, app, data)
• Use /24 or larger for application subnets
• Plan for at least 2x current capacity
• Use descriptive naming (snet-web, snet-app, snet-data)
• Apply NSGs to every subnet

❌ Avoid:

• Putting all resources in one subnet
• Using /29 or smaller (too few IPs, only 3 usable)
• Mixing security zones in same subnet
• Creating too many tiny subnets (management overhead)

VNet Peering

✅ Do:

• Use hub-spoke for enterprise deployments
• Enable forwarded traffic in hub
• Document peering relationships
• Use resource locks on peering connections

❌ Avoid:

• Creating spoke-to-spoke peerings (use hub routing)
• Full mesh peering (doesn't scale, use Virtual WAN)
• Forgetting bidirectional peering requirements
• Deleting peerings without impact analysis

Routing

✅ Do:

• Force tunnel traffic through Azure Firewall in hub
• Use User Defined Routes (UDR) for traffic control
• Document routing decisions
• Test failover scenarios

❌ Avoid:

• Allowing direct internet access from data tier
• Creating routing loops
• Bypassing security controls with 0.0.0.0/0 to Internet

Things to Avoid

❌ Don't change VNet address space after deployment (breaks resources) ❌ Don't create VNets without planning for hybrid connectivity ❌ Don't use overlapping CIDRs across environments ❌ Don't deploy production without route tables ❌ Don't mix environments (prod/dev) in same VNet ❌ Don't create more than 500 peerings per VNet ❌ Don't use default names (vnet1, subnet1) ❌ Don't skip DNS planning (use Private DNS Zones) ❌ Don't forget to enable DDoS Protection on production VNets

CIDR Calculation Reference

CIDR	Subnet Mask	Total IPs	Usable IPs (Azure)	Use Case
/16	255.255.0.0	65,536	~65,000	Large VNet
/20	255.255.240.0	4,096	~4,000	Medium VNet
/22	255.255.252.0	1,024	~1,000	AKS nodes
/24	255.255.255.0	256	251	Standard subnet
/25	255.255.255.128	128	123	Small subnet
/26	255.255.255.192	64	59	Firewall/Bastion
/27	255.255.255.224	32	27	Gateway subnet
/28	255.255.255.240	16	11	Very small
/29	255.255.255.248	8	3	Not recommended

Advanced Scenarios

Multi-Region Hub-Spoke

East US Hub (10.0.0.0/16) <--Global VNet Peering--> West US Hub (10.10.0.0/16)
    |                                                      |
    +-- Spoke 1 (10.1.0.0/16)                            +-- Spoke 4 (10.11.0.0/16)
    +-- Spoke 2 (10.2.0.0/16)                            +-- Spoke 5 (10.12.0.0/16)
    +-- Spoke 3 (10.3.0.0/16)

Global VNet Peering Considerations:

• Cross-region bandwidth charges apply
• Latency depends on region distance
• Use for disaster recovery and geo-distribution

Azure Virtual WAN (For Very Large Deployments)

Consider Virtual WAN when:

• 50+ branch locations
• Multiple Azure regions
• Need managed routing
• SD-WAN integration

Monitoring & Troubleshooting

Verify VNet Configuration

# List all VNets
az network vnet list -o table

# Show VNet details
az network vnet show \
  --resource-group rg-network \
  --name vnet-hub-prod-eastus

# List subnets
az network vnet subnet list \
  --resource-group rg-network \
  --vnet-name vnet-hub-prod-eastus \
  -o table

# Check peering status
az network vnet peering list \
  --resource-group rg-network \
  --vnet-name vnet-hub-prod-eastus \
  -o table

Check Effective Routes

# See routes for a specific NIC
az network nic show-effective-route-table \
  --resource-group rg-app \
  --name nic-vm-web-01 \
  -o table
